LOCAL DYNAMICS FOR THE CALCULATION OF GLOBAL PROPERTIES IN GRAPHS

Laura Mayely Leal Chacón $^1$

lleal@dim.uchile.cl

April 2023

$^1$Laura was partly financed by ANID BECA DOCTORADO NACIONAL 2019-21191440.

Distributed system

Classic problems

The density classification problem

The computation of a Maximal Independent Set

To solve this problem we follow the idea proposed in [1], where the authors designed a cellular automaton inspired by two mechanisms: diffusion and amplification.

\begin{equation}\label{e_calor_biestable} \frac{\partial u}{\partial t} -\nu \Delta u = \gamma b_{\rho_c}(u), \end{equation}

(1.1)

$$b_{\rho_c}(u)=u(1-u)(u-\rho_c).$$

(1.2)

The resulting nonlinear heat-equation is called the bistable heat equation.

[1] Raimundo Briceño, Pablo Moisset de Espanés, Axel Osses, and Ivan Rapaport. Solving the density classification problem with a large diffusion and small amplification cellular automaton. Physica D: Nonlinear Phenomena, 261:70-80, 2013.

The idea proposed is:

\begin{equation*}\label{v_d_G} \frac{u_{i}^{k+1}-u_{i}^k}{\Delta t} + \frac{\nu}{h^2}\sum_{j \in N(i)} L_{ij}u_j^k = \gamma b_{\rho_c}(u^{k}_i), \end{equation*}

(1.3)

If we denote by $\sigma =\Delta t \gamma$, $\sigma'=\frac{\nu \Delta t}{h^2}$ and $b_{\rho_c}(u_i)=u_i(1-u_i)(u_i-\rho_c)$, we obtain the local rule:

$$u_{i}^{k+1} = u_{i}^k - \sigma' \sum_{j \in N(i)} L_{ij}u_j^k + \sigma b_{\rho_c}(u^{k}_i).$$

(1.4)

Finally we choose the parameter $\nu$ in order to fix $\sigma'=\frac{1}{(\Delta+1)}$, where $\Delta = \Delta(G)$ is the maximum degree of $G$.

Then, the large diffusion and small amplification dynamic over $G$ updating rule $\Phi_{\sigma}$:

\begin{align}\label{eq:dyn} v^{t} &= \left(I - \frac{L}{\Delta+1}\right) u^t \\ \\ u^{t+1}_i &= f_{\sigma}(v^t_i), \end{align}

(1.5)

(1.6)

where $f_\sigma(x) = x + \sigma b_{\rho_c}(x)$.

Algorithm:

$u_i(0) \leftarrow$ Randon $\{0, 1\}$
$t \leftarrow 1$
while stopping criteria do:
$u_{i}^{t+1} = u_{i}^t - \frac{1}{(\Delta+1)} \displaystyle\sum_{j \in N(i)} L_{ij}u_j^t + \sigma b_{\rho_c}(u^{t}_i)$
$t \leftarrow t+1$
end while

Stopping criteria with tol = $10^{-3}$
* if $\sigma=0$:
$max[u(t)-u(t-1)] < tol$
* if $\sigma > 0$:
$min\{max[u(t)-1], max[u(t)]\}< tol$

Convergence criterion
* if $max[u(t)-1] < max[u(t)]$
$u \rightarrow 1$
* else
$u \rightarrow 0$

Complete graph with 11 vertex and 55 edges.

\begin{bmatrix} 10 & -1 & -1 & -1 & -1 & -1 & -1 & -1 & -1 & -1 & -1 \\ -1 & 10 & -1 & -1 & -1 & -1 & -1 & -1 & -1 & -1 & -1 \\ -1 & -1 & 10 & -1 & -1 & -1 & -1 & -1 & -1 & -1 & -1 \\ -1 & -1 & -1 & 10 & -1 & -1 & -1 & -1 & -1 & -1 & -1 \\ -1 & -1 & -1 & -1 & 10 & -1 & -1 & -1 & -1 & -1 & -1 \\ -1 & -1 & -1 & -1 & -1 & 10 & -1 & -1 & -1 & -1 & -1 \\ -1 & -1 & -1 & -1 & -1 & -1 & 10 & -1 & -1 & -1 & -1 \\ -1 & -1 & -1 & -1 & -1 & -1 & -1 & 10 & -1 & -1 & -1 \\ -1 & -1 & -1 & -1 & -1 & -1 & -1 & -1 & 10 & -1 & -1 \\ -1 & -1 & -1 & -1 & -1 & -1 & -1 & -1 & -1 & 10 & -1 \\ -1 & -1 & -1 & -1 & -1 & -1 & -1 & -1 & -1 & -1 & 10 \\ \end{bmatrix}

Laplacian matrix of the complete graph with 11 vertex.

\begin{bmatrix} \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} \\ \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} \\ \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} \\ \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} \\ \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} \\ \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} \\ \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} \\ \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} \\ \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} & \frac{1}{11} \\ \end{bmatrix}

Diffusion coefficient for complete graph with 11 vertex
$ \omega = \left(I - \frac{L}{\Delta+1}\right) \rightarrow \frac{1}{11}*$ U

* Diffusion phenomenon

Simulation of the algorithm applied to
the complete graph of 11 vertex and $\sigma = 0$.

$u(0) = [0, 1, 1, 1, 1, 1, 1, 0, 1, 0, 1]$

$u(1) = \frac{1}{11}$ U $[0, 1, 1, 1, 1, 1, 1, 0, 1, 0, 1]^t$
$u(1) = \frac{8}{11} \overrightarrow{1}$

$u(2) = \frac{1}{11}$ U $\frac{8}{11} [1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1]^t$
$u(2) = \frac{8}{11} \overrightarrow{1}$

* Diffusion and amplification phenomenon

Simulation of the algorithm applied to
the complete graph of 11 vertex and $\sigma = 0.01$.

$u(0) = [0, 1, 1, 1, 1, 1, 1, 0, 1, 0, 1]$

$u(1) = \frac{8}{11} \overrightarrow{1} + \sigma \frac{8}{11} \overrightarrow{1} \frac{3}{11} \overrightarrow{1} \frac{5}{22} \overrightarrow{1}$
$u(1) = \frac{8}{11} \overrightarrow{1} + \frac{1}{100} \frac{60}{1331} \overrightarrow{1}$
$u(1) = \frac{8}{11} \overrightarrow{1} + \frac{3}{6655} \overrightarrow{1}$
$u(1) = 0.727272 \overrightarrow{1} + 0.00045078 \overrightarrow{1}$

Theoretical Result.

Theorem.

For every connected graph $G$ and for every $\varepsilon >0$ there exists a $\sigma>0$ such that the large diffusion and small amplification dynamic over $G$ solves the $\varepsilon$-approximation of the density classification problem.

Laura Leal, Pedro Montealegre, Axel Osses, and Iván Rapaport. A large diffusion and small amplification dynamics for density classification on graphs. International Journal of Modern Physics C, 34(05), 2023.

Experimental study.

Regular graphs, which are the $n$-node graphs where each node has the same degree $d$

Erdős-Rényi graphs, which is a model of random graphs, where each edge is independently included in the graph with probability $p$. For our experiments, for an $n$-node graph, we pick $p = \frac{2 \ln (n)}{n}$, which roughly corresponds to the minimum probability that ensures that the graph is connected with high probability.

Barabási-Albert graphs, which is another model of random graphs, generated sequentially according to a parameter $m$ as follows. The network starts with $m$ nodes connected randomly. Then, $n-m$ nodes are sequentially added to the graph. Each time that a new node is added it is connected to $m$ existing nodes with a probability that is proportional to the degree that existing nodes already have.

Barabási-Albert graphs with parameter m=2

Barabási-Albert graphs with parameter m=4

star graph

For our simulations:

Pick odd values of $n$, from $11$ to $251$ with a step of $30$.

For each $n$:

1) $d$-Regular graphs for $d \in \{4,6,8\}$ (50 samples for each $d$);

2) Erdős-Rényi graphs with parameter $p = \frac{(2 \ln (n))}{n}$;

3) Barabási-Albert graphs of parameter $m \in \{1,2,3,4\}$ (50 samples for each $m$).

For each graph, $10 \cdot n$ random initial configurations are picked uniformly at random.

Report the results of our computational simulations.

Experimental study when $\sigma = 0$.

Experimental study when $\sigma = 0.01$.

Mean convergence time vs amplification, in graphs of 11 vertex.

Mean porcentage of effectiveness vs amplification, in graphs of 11 vertex.

In a keynote talk of SIROCCO 2022 [1], George Giakkoupis presented two extremely simple randomized algorithms for MIS. His algorithms have two interesting properties: they are self-stabilizing and they require only two or three states.

[1] George Giakkoupis. Simple efficient distributed processes on graphs, 2022. Keynote talk of the 29th International Colloquium of Structural Information and Communication Complexity, SIROCCO 2022, Paderborn, Germany, June 28th, 2022.

2-MIS-Dynamics

(i) If $x_u=0$ and $\forall v \in N(u), x_v = 0$,
then $x_u = 1$.
(ii) If $x_u \neq 0$ and $\exists v \in N(u), x_v \neq 0$,
then $x_u \in_U \{0,1\}$.
(iii) $x'_u = x_u$ otherwise.

Example for $K_{10}$:

u(0) = [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
u(1) = [1, 1, 1, 1, 1, 1, 1, 1, 1, 1]
u(2) = [0, 0, 1, 1, 0, 0, 0, 0, 1, 0]
u(3) = [0, 0, 0, 0, 0, 0, 0, 0, 1, 0]

k-MIS-Dynamics with $k = {3}$

(i) If $x_u=0$ and $\forall v \in N(u), x_v = 0$,
then $x'_u \in_U [k-1]$.
(ii) If $x_u \neq 0$ and $\exists v\in N(u), x_u = x_v$
and $\forall v \in N(u), x_v \leq x_u$,
then $x'_u \in_U [k-1]$.
(iii) If $x_u \neq 0$ and $\exists v \in N(u), x_v > x_u$,
then $x'_u = 0$.
(iv) $x'_u = x_u$ otherwise.

Example for $K_{10}$:

u(0) = [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
u(1) = [2, 2, 2, 1, 2, 1, 2, 1, 1, 2]
u(2) = [2, 1, 2, 0, 1, 0, 2, 0, 0, 2]
u(3) = [1, 0, 2, 0, 0, 0, 1, 0, 0, 1]
u(4) = [0, 0, 2, 0, 0, 0, 0, 0, 0, 0]

Experimental study.

For our simulations:

Pick values of $n$, from $10$ to $4.960$ with a step of $50$.
Pick values of $n$, from $10$ to $1.000$ with a step of $1$.

For each $n$:

1) $d$-Regular graphs for $d \in \{4,6,8\}$.

2) Erdős-Rényi graphs with parameter $p = \frac{(2 \ln (n))}{n}$.

3) Barabási-Albert graphs of parameter $m \in \{1,2,3,4\}$ (50 samples for each $m$).

For each graph, $1.000$ ó $5.000$ simulations.

Report the results of our computational simulations.

Simulation on the complete graph

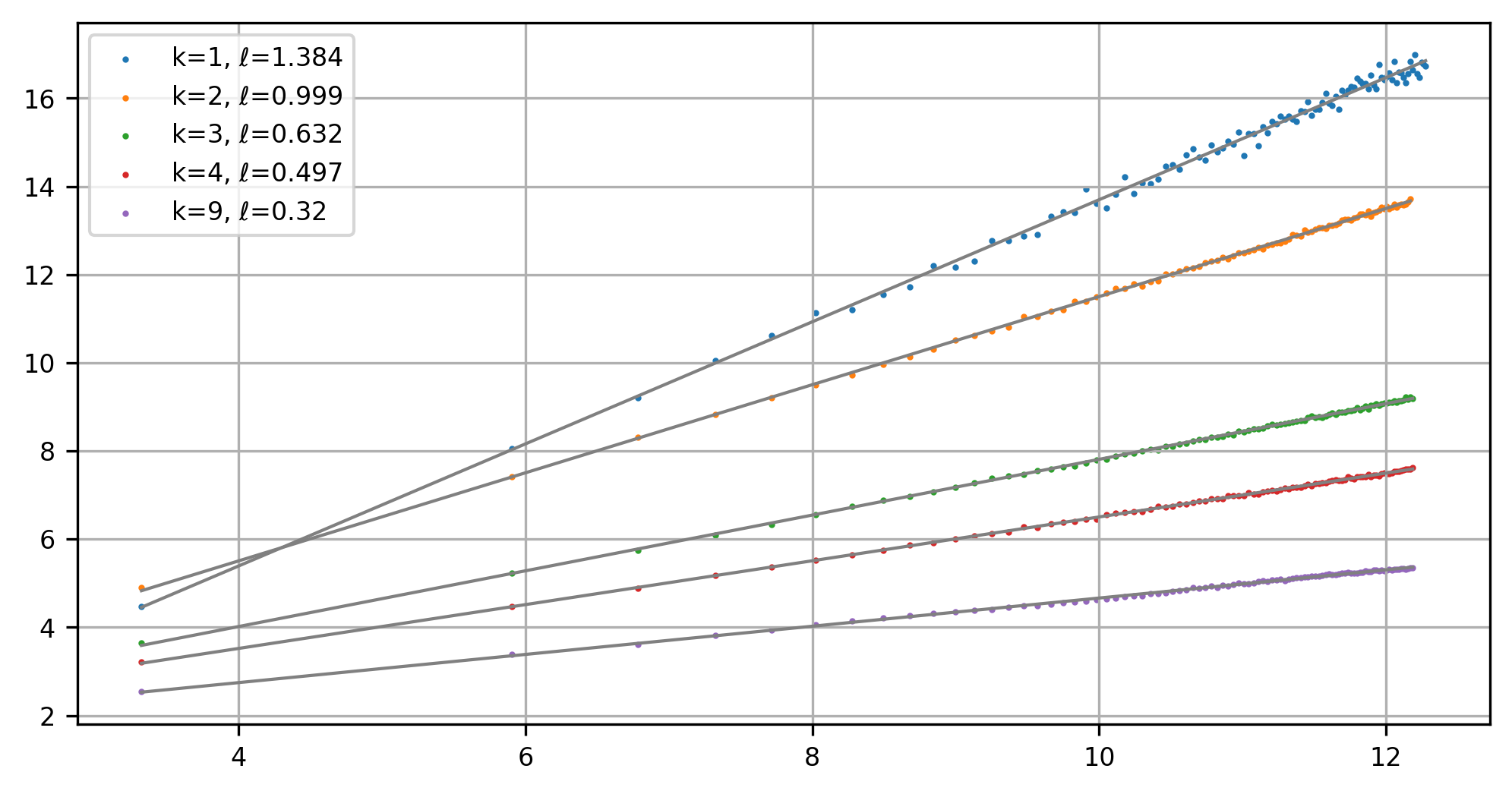

Plots of the average convergence time for the 2-MIS-Dynamics and MIS-Dynamics for different graph classes. In the left column, we have the linear scale, while in the right column we give the $x$-axis in $\log_2$ scale.

Worst-case convergence

Theoretical Results.

A bound on the convergence time of the MIS-Dynamics on arbitrary graphs.

Theorem 1.

For every initial configuration, the MIS-Dynamics converges to a configuration representing a maximal independent set in $\mathcal{O}(\alpha\cdot\log n)$ time-steps with high probability.

$\alpha$ is the size on the maximun independent set.

The 2-MIS-Dynamics on arbitrary graphs.

Theorem 2.

For every initial configuration, the 2-MIS-Dynamics converges to a configuration representing a maximal independent set in $\mathcal{O}(\alpha\cdot\log^2 n)$ time-steps with high probability.

The 2-MIS-Dynamics on graphs of bounded degeneracy.

Theorem 3.

For every initial configuration over a $d$-degenerate graph, the 2-MIS-Dynamics converges to a configuration representing a maximal independent set in $\mathcal{O}(\log n)$ time-steps with high probability.

Eric Goles, Laura Leal, Pedro Montealegre, Iván Rapaport, and Martín Ríos-Wilson. Distributed maximal independent set computation driven by finite-state dynamics. International Journal of Parallel, Emergent and Distributed Systems, 38:85-97, 2023.
